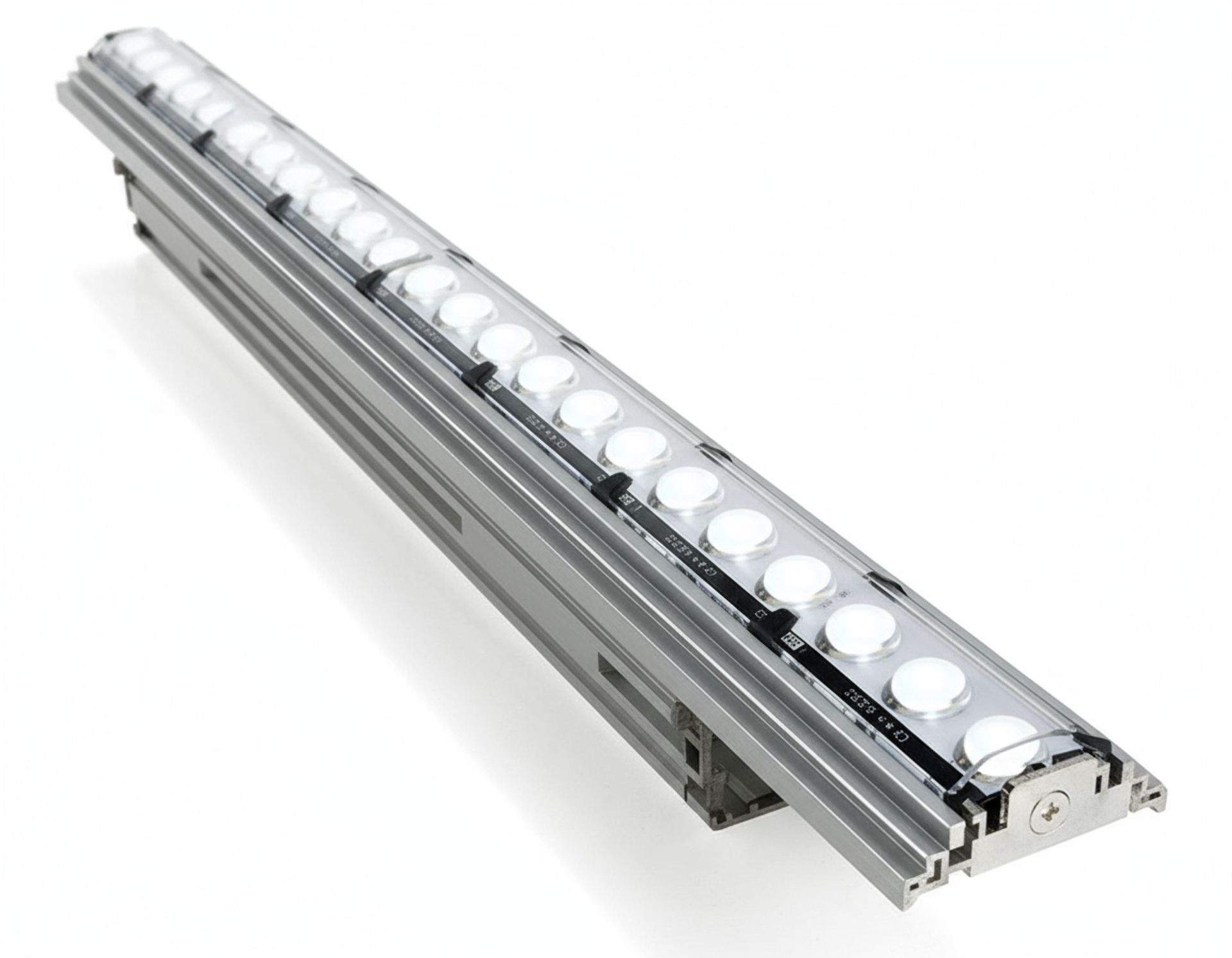

iW Graze QLX Powercore, 1ft, 60 x 30 Degree

'Linear exterior LED wall grazing fixtures with intelligent white light'

With light output of up to 673 lumens and a power consumptionof only 15 W per foot, iW Graze QLX Powercore is perfect for surfaceillumination applications calling for a balance of cost and performance.Featuring Powercore technology, fixtures process power directly from linevoltage, eliminating the need for external power supplies. These versatilefixtures use channels of cool, neutral, and warm white LEDs to produce colortemperatures ranging from 2700 K ? 6500 K. Four fixture lengths and five beamangles support a large range of fa?ade or surface illumination applications.

Installing the iW Graze Powercore

iW Graze Color Application Guide

Fixtures are part of a system which require:

1.) One or More Data Enabler Pro Devices

2,) Any Philips controller, including Light System Manager, iPlayer 3, and ColorDial Pro, or a third-party controller

3.) Depending on the installation's design, you may want one foot, five foot, or 10 foot jumper cables to ad space between fixtures or the fixtures can be mounted directly together.

4.) 2+ ground copper wire to connect junction boxes to power if installing in parallel.


iW Graze EC Powercore EC- Spec Sheet

Tailor light output to specific applications- Available in four standard lengths, with standard 9? x 9?, 10? x 60?, 15? x 30?, 30? x 60? and 60? x 30? beam angles.

High-performance illumination and beam quality- iW Graze Powercore fixtures deliver up to 876 lumens of high-quality white light per foot. Superior beam quality offers striation-free saturation for several feet from fixture placement with no visible light scalloping between fixtures.

Integrates Powercore technology- Powercore technology rapidly, efficiently, and accurately controls power output to fixtures directly from line voltage over a single standard cable, dramatically simplifying installation and lowering total system cost.

Versatile installation options- Convenient push-and-click connectors let you easily and rapidly install Leader Cables and Jumper Cables. Multiple cable lengths support a variety of layouts. Constant torque locking hinges offer simple and consistent position control from various angles. The low-profile aluminum housing accommodates placement within most architectural niches.

Superior color consistency and accuracy- Optibin, an advanced binning algorithm, sets a new standard for the color consistency and uniformity of LED sources used in manufacturing.

Universal power input range- Fixtures accept a universal power input range of 100 ? 277 VAC for consistent installation anywhere in the world.

Dimming capability- Patented DIMand technology offers smooth dimming capability with selected commercially available reverse-phase ELV-type dimmers.
