LED Designer Bell Fixtures - Choose Your Options

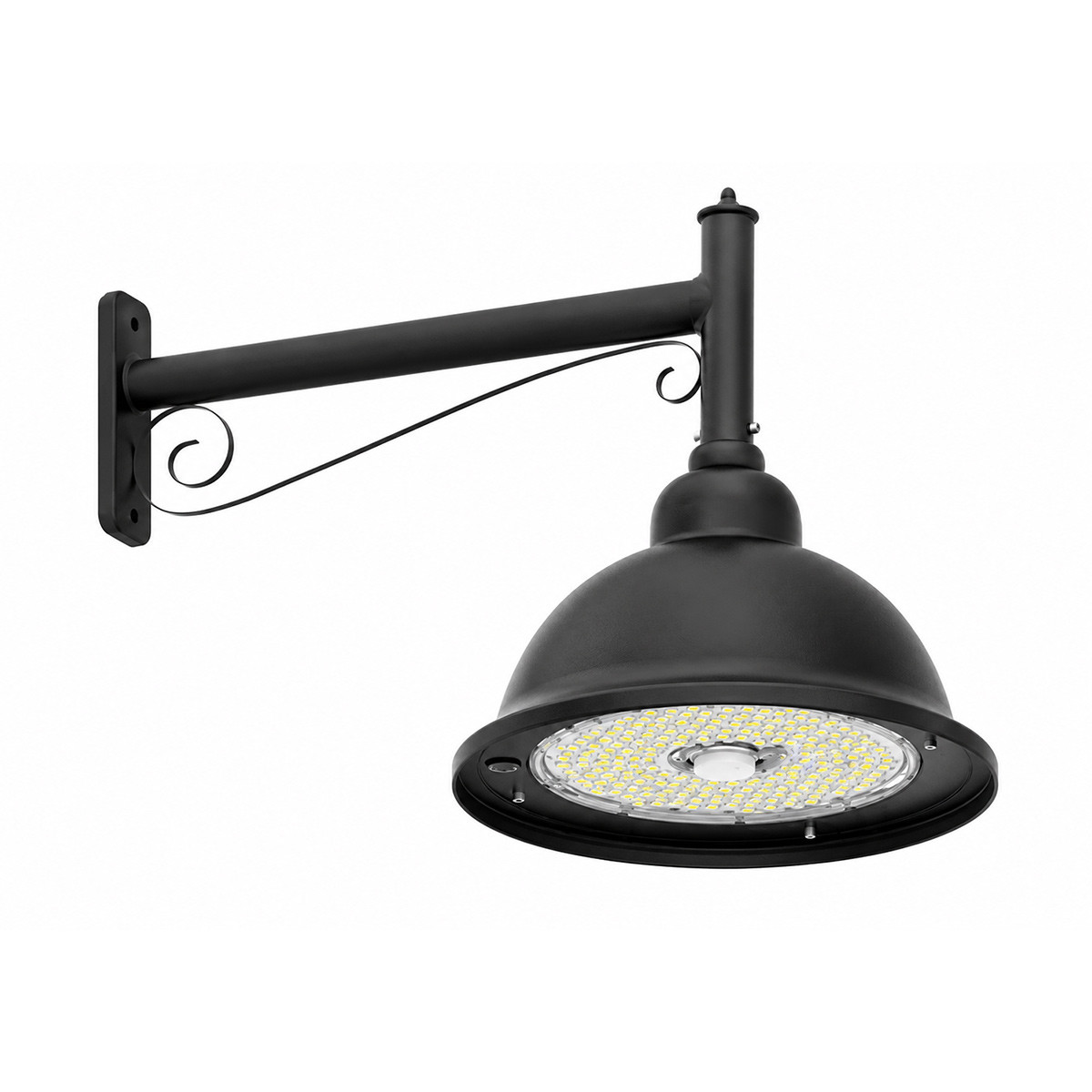

Designer Bell Light

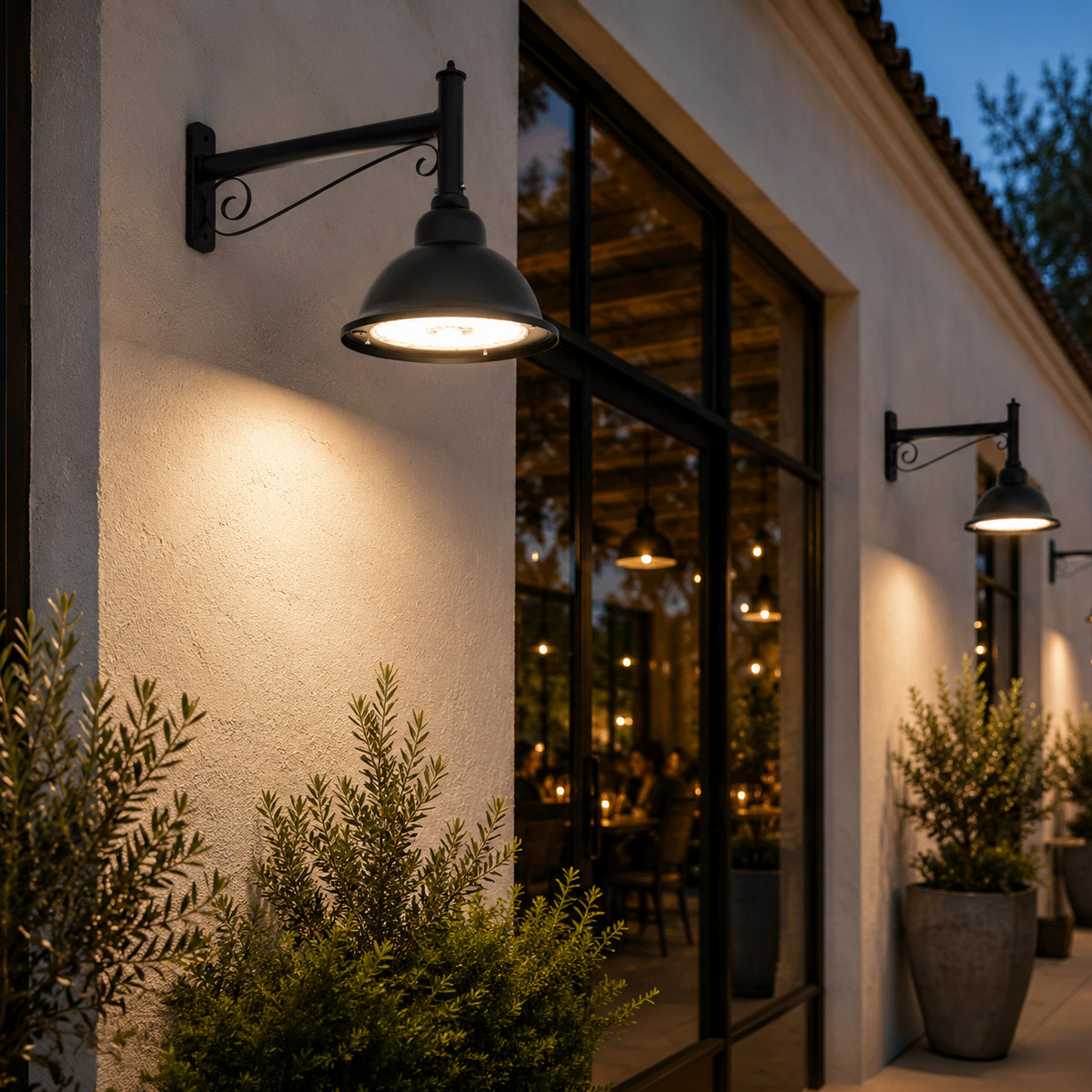

With a modern but classic design this fixture is suited for residential and high-end commercial properties primarily. This fixture offers an ambient clear light which makes it ideal for parks, walkways, residences, entrance ways, and office buildings amongst many more.

The design allows for the light to be aimed downward to maximize distribution and reduce light pollution per the dark sky’s initiative enabled in many urban areas. The clear high transmittance polycarbonate lens lessens glare and gives a uniform illumination to really show off your property at night.

This fixture is deliberately designed to mimic the look of traditional metal halide fixtures so the look of your site will not be altered while still taking advantage of all the benefits LED technology has to offer.

This fixture is wattage and color temperature selectable to allow uniformity across a site even if different lighting levels are required in certain areas. This allows the physical appearance to remain the same while the lighting system can perform as intended.

LED technology typically has a life span 5x that of metal halide with an energy saving of 70% making the upgrade to LED cost effective with maintenance free lighting for years to come. Chemical waste such as high levels of mercury from metal halide lamps is also eliminated when upgrading to LED, creating an all-round green solution for your property.

Safety and security are always a priority. Upgraded lighting will reduce vandalism and petty crime, making your customers and tenants feel safer. Upgraded lighting can also increase customer volume and attract anchor tenants thus improving the value of the given area commercially.

Features:

• Clean and classic design compatible with residential and commercial buildings

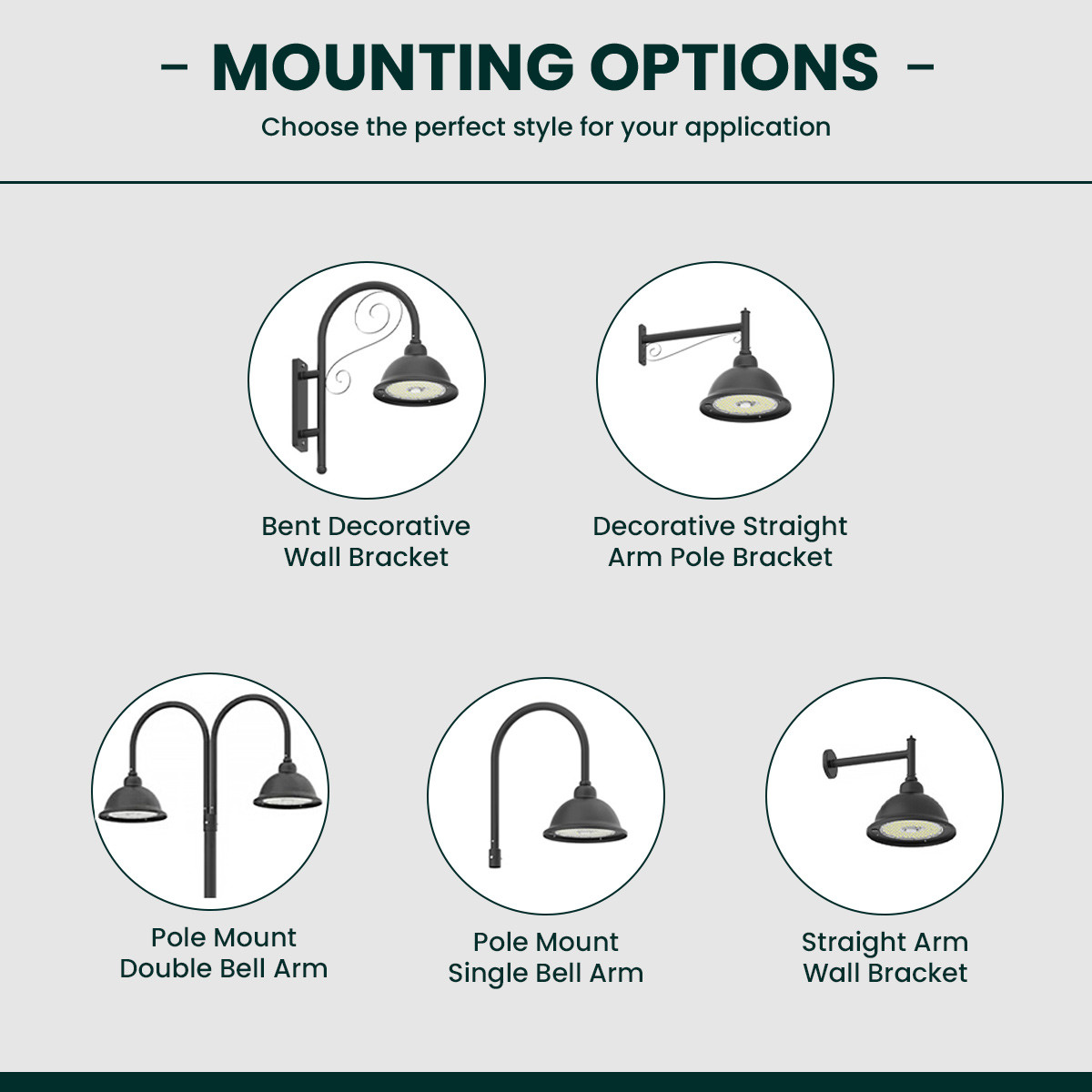

• 1.5-inch pole mounting as standard
• Easy installation by design

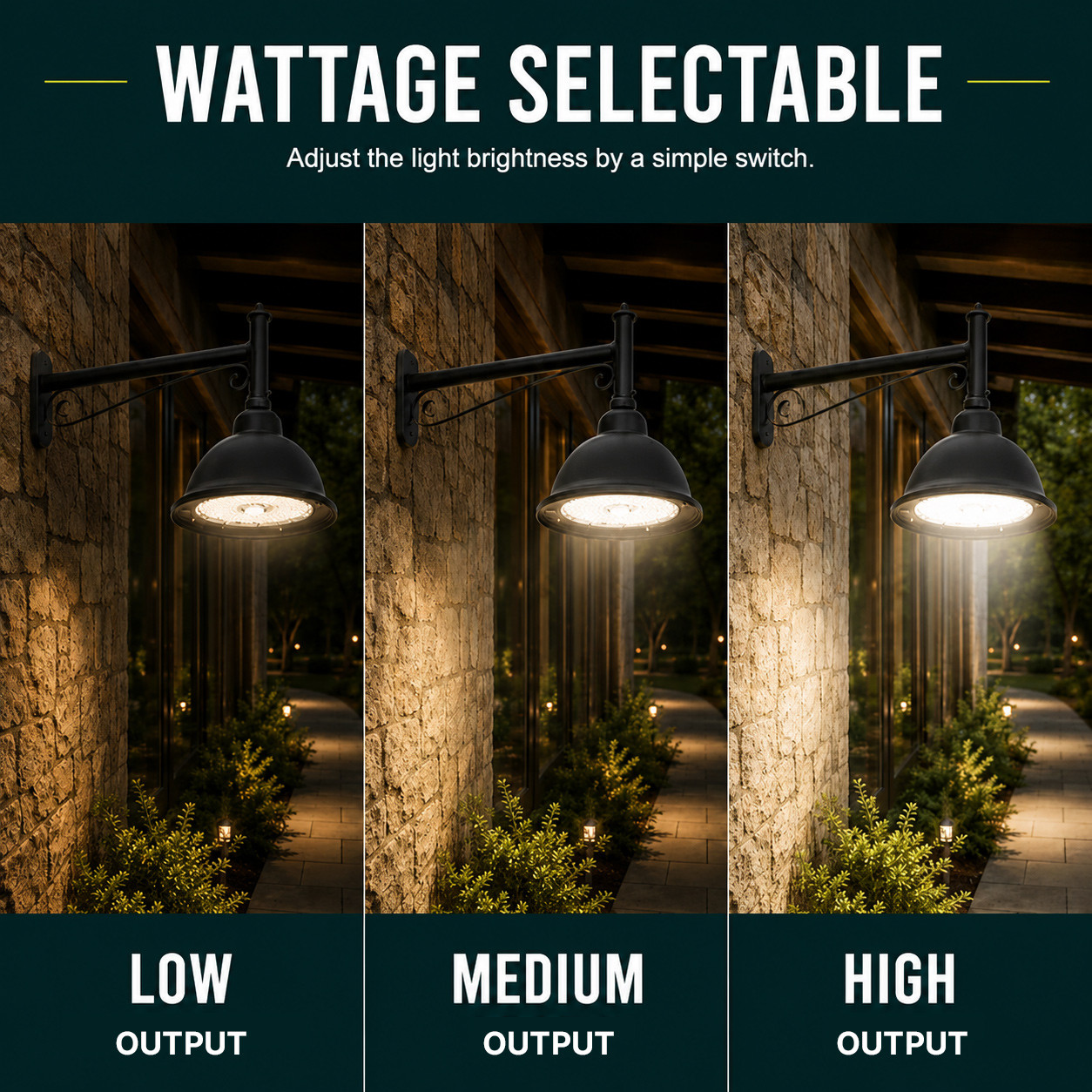

• Multiple wattage selectable 50/80/100W

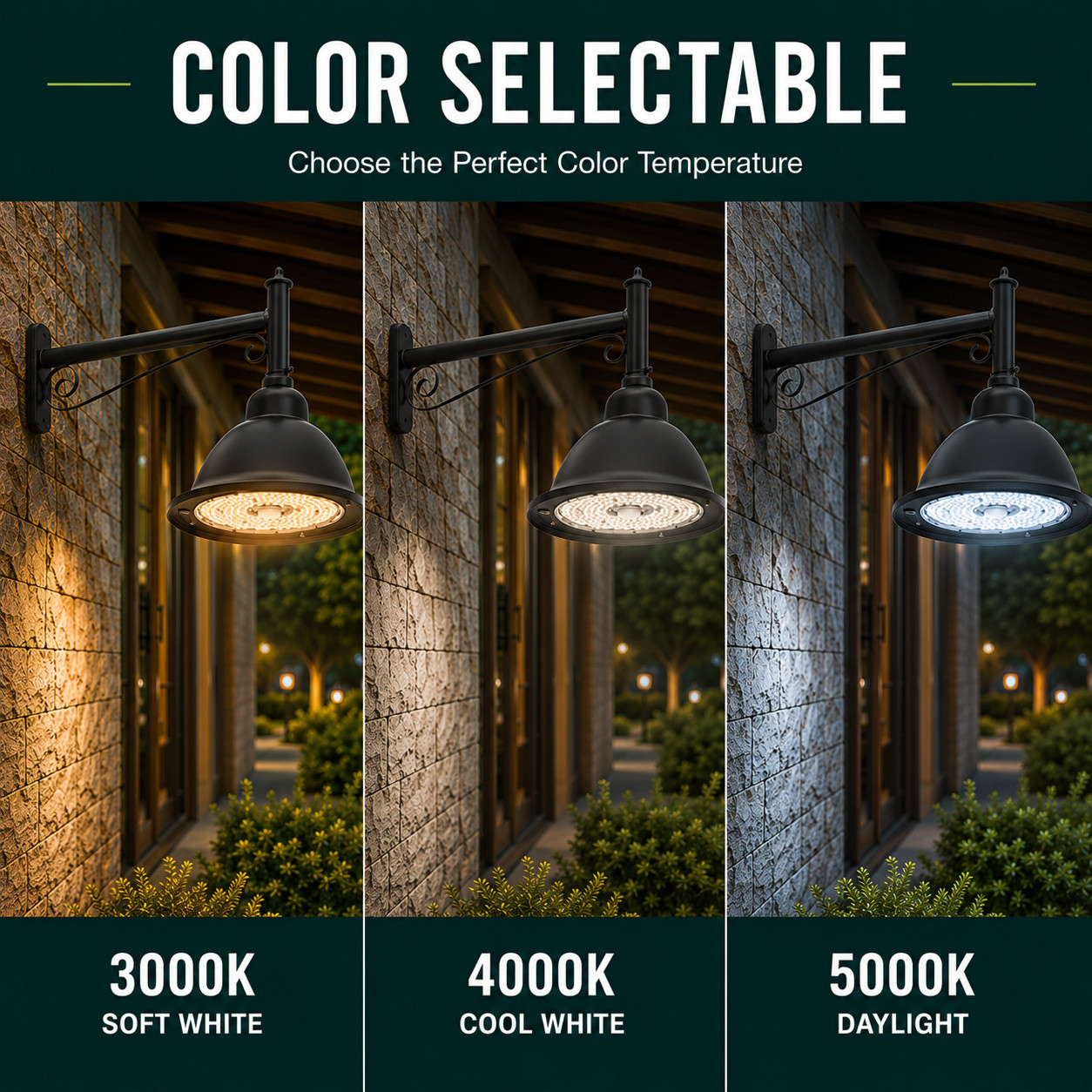

• Color temperature selectable 30K/40K/50K

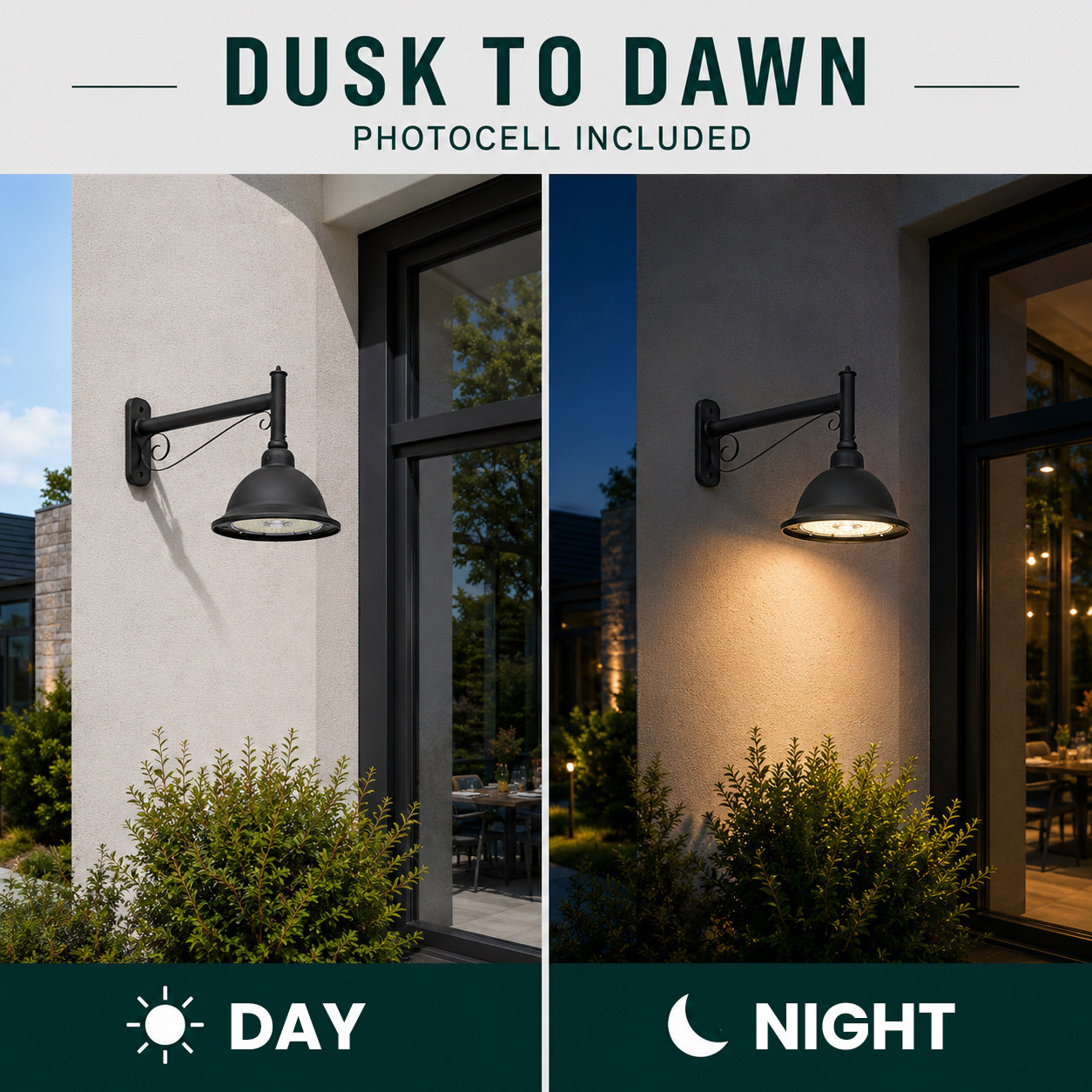

• Optional photocell or PIR motion sensor available *Please call our sales team for more details as we do not have these options online at the moment
• Die cast aluminum housing for heat dissipation

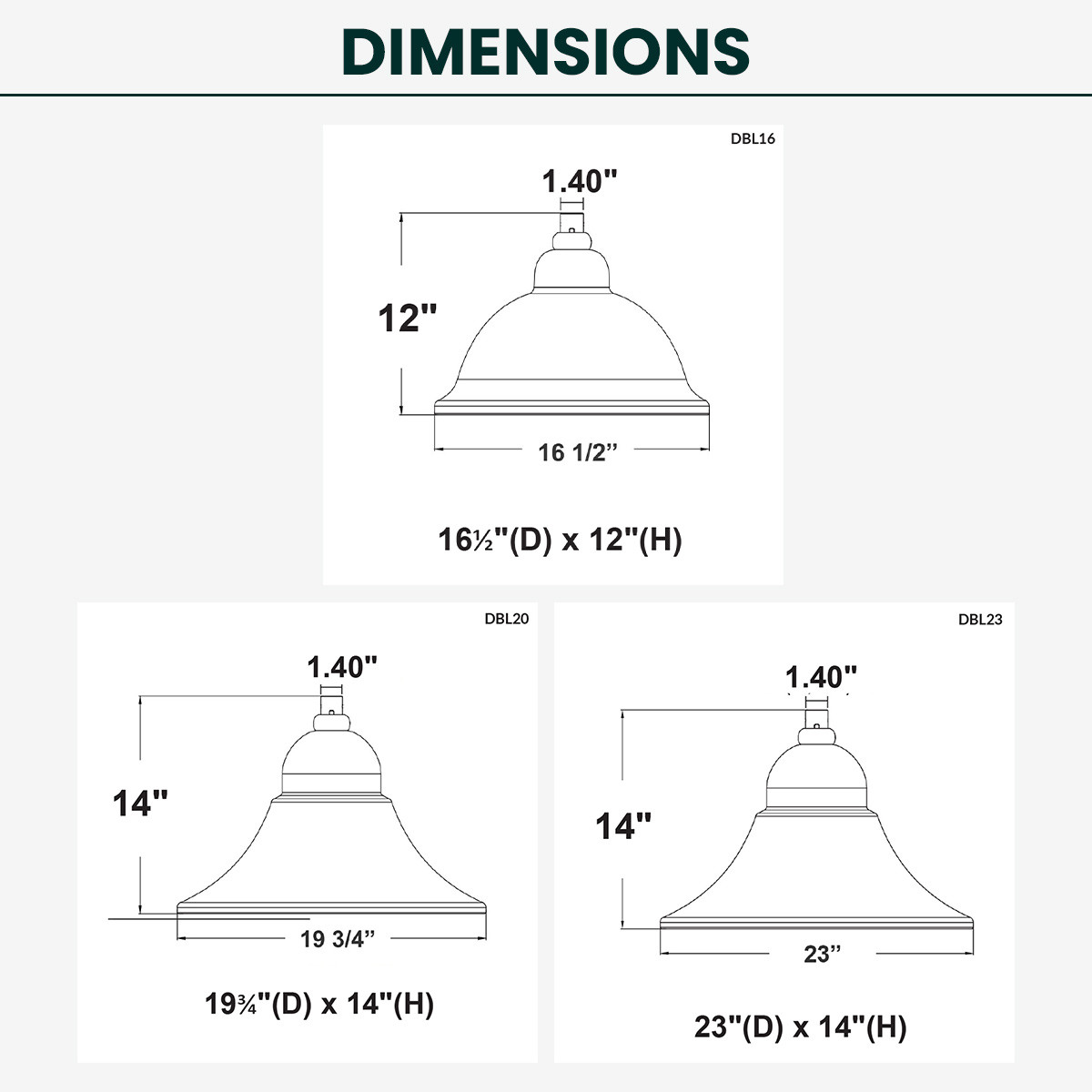

• 16” & 20” diameter models available
• 50,000 hours rated life

Electrical:

• usUL Rated
• Voltage: 110/277V AC Voltage
• IP66 Rated for wet locations
• Operating temperature rating of 0ºF to 104ºF (-17ºC to 40ºC)
• CRI: Ra>70
• 0-10V dimming
• 130 LM/W
• Up to 1300 lumens
• 18.3 AWG power cable included

WARRANTY

• 5-year limited system warranty standard
• Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation(as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.
