Aluminum LED Edge Lit Exit Sign Choose Clear, Mirror or White panel and White, Black, and Aluminum housing color This durable emergency light is used by hotels, apartment buildings, restaurants or really any place an emergency light is required by code. It is pretty easy to install, relatively maintenance free and has a red quick test button. It features a rechargeable battery that should last at least 5 years. When installing make sure to choose between 120 volt and 277 Volt wires.
Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
Technical
Illumination
- Ultra bright, energy efficient, long life Red or Green LED.
- UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
- Double face utilizes factory installed silver or white mylar background panel.
Electrical
- Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.
- Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
- Push-to-test switch for mandated code compliance testing.
- 4.8V long life maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

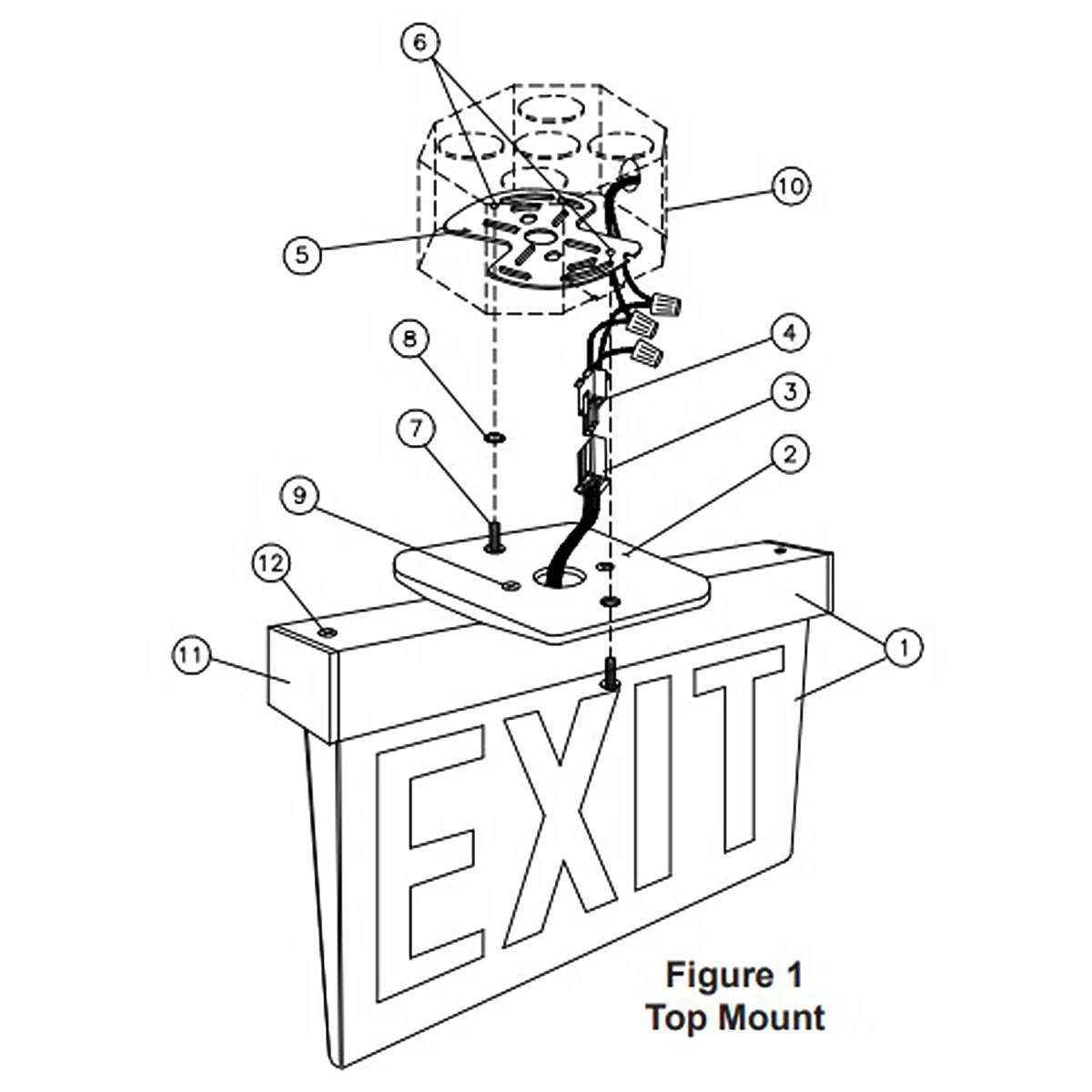

- Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
Housing

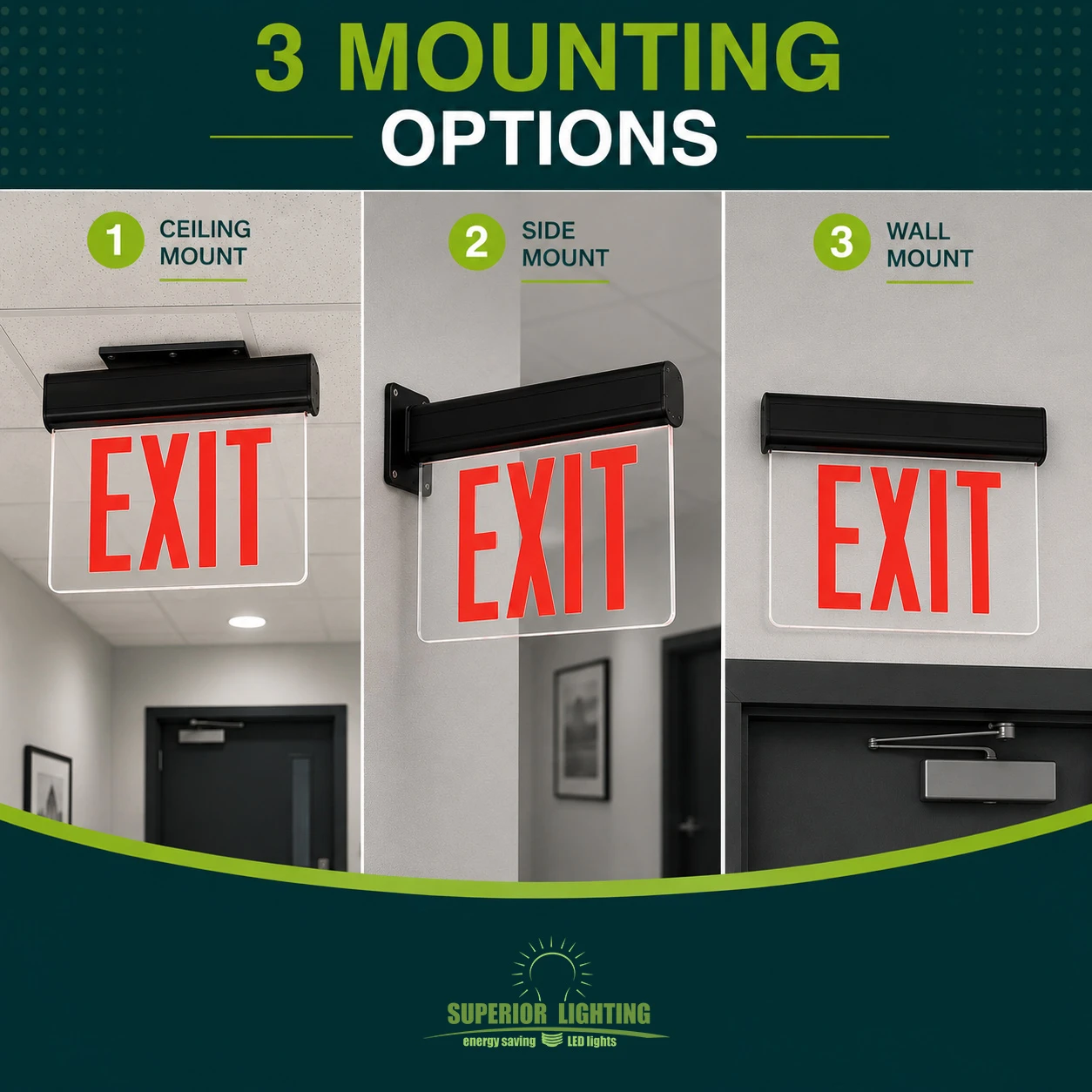

- EZ-snap mounting canopy included for top, end or back mount.
Housing
- Injection-molded, engineering grade 5VA, flame retardant, high impact resistant thermoplastic housing in white or black finish.
- Self-adhesive chevron appliques and guide template provided for directional indication.
Warranty/Listing
- Five year warranty on all electronics and housing. Batteries pro-rated for five years.
- UL Listed for damp locations (0?C ? 50?C).
- Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
