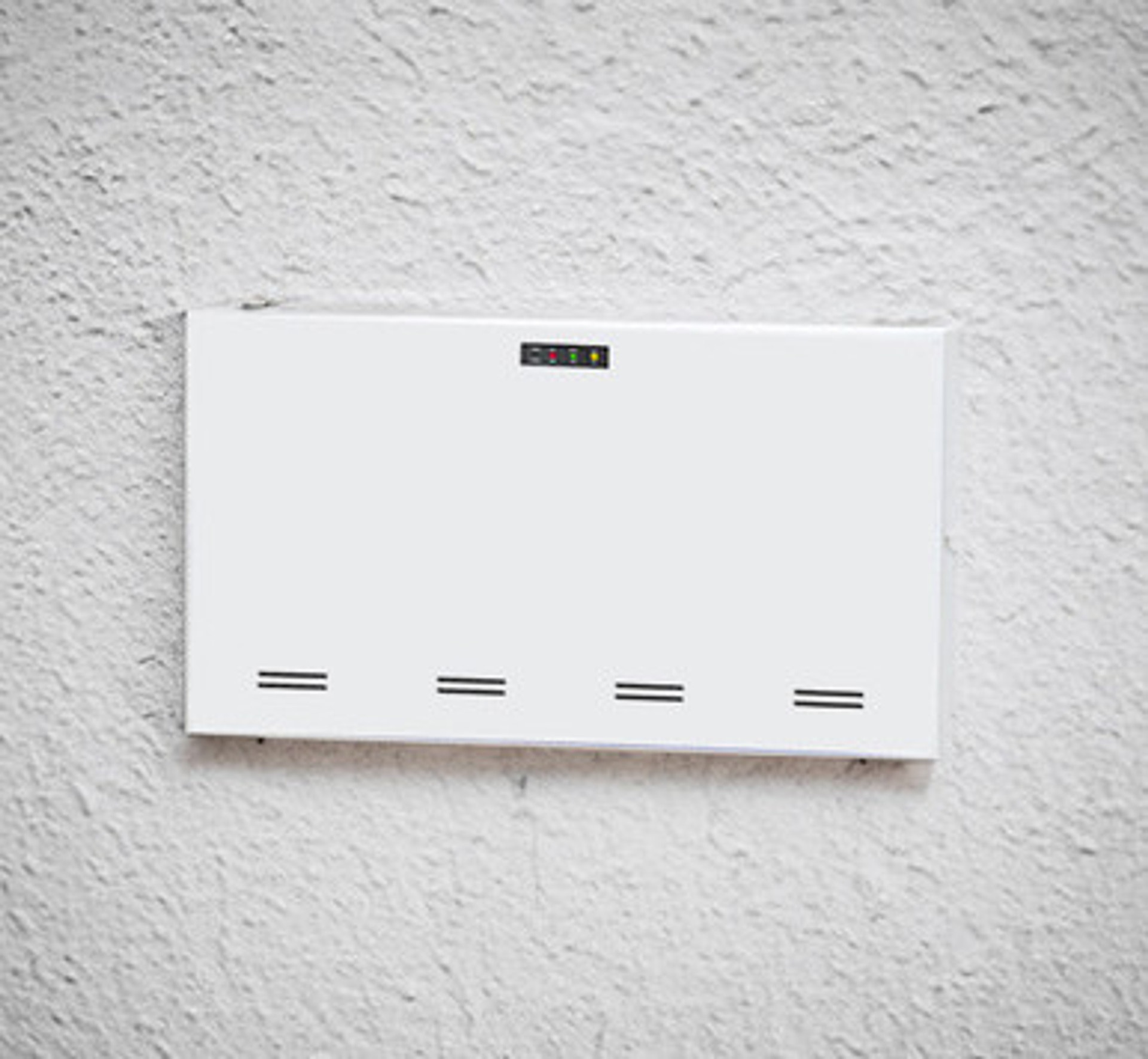

Mini Emergency Inverter System



Mini emergency power inverters are an integral part of any lighting system. Supplying back-up power during an outage to lighting is a sure-fire way to ensure the safety of your property and most importantly, personnel.

Mini-electrical inverter systems can power up to 220W/250VA of incandescent, fluorescent, induction or LED lighting loads. Pulse width modulated (PWM) output design provides clean, 60Hz sinusoidal emergency power to loads.

MPS models are designed for easy installation either on or near controlled fixtures and support Normally-ON, Normally-OFF or SWITCHED operation. This makes them a fast and simple solution eliminating the potential of a serious incident.

Multiple mounting options are available for this model allowing for ease of installation in any area. Surface mount models are designed for mounting to walls by means of keyhole slots provided in the back of the unit housing. Recess models provide recess mounting holes on both sides of the enclosure for use with drywall or wooden paneling. A drop ceiling grid mount design allows simple drop-in installation between T-grid runs. Safety wires (not included) are required for attachment to building structures. With a high-grade powder coated modern steel housing this system will blend into any environment, residential or commercial.



Additional Special-Order Options

*Must call in to our commercial sales team to order these features

  • CEC: Certified to CEC under Title 20 regulations
  • SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes
  • Remote Test Switch Panel
  • 4-output circuit switching



Electrical

Input

  • Input Voltages: 120 or 277VAC field selectable
  • Input Frequencies: 60Hz ±2%
  • Input Protection: AC Line Fuses

Output

  • Output Voltages: (60Hz) 120 or 277VAC
  • Waveform: Sinusoidal (digitally controlled) PWM design
  • Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
  • Output Distortion: Less than 3% THD (linear load)
  • Output Protection: Line and inverter fuses



Warranty/Listings

  • Three year warranty on inverter unit and internal battery. *Lamps or fixtures powered by this unit are not covered under this warranty.
    Full coverage against defects in materials and workmanship for (3) years from date of shipment
  • All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Optional T-Grid models are plenum rated, and meet City of Chicago CCEA requirements
  • UL listed for damp locations 68°F-86°F or 20°C-30°C
  • FCC Part 15 Class B compliant
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
